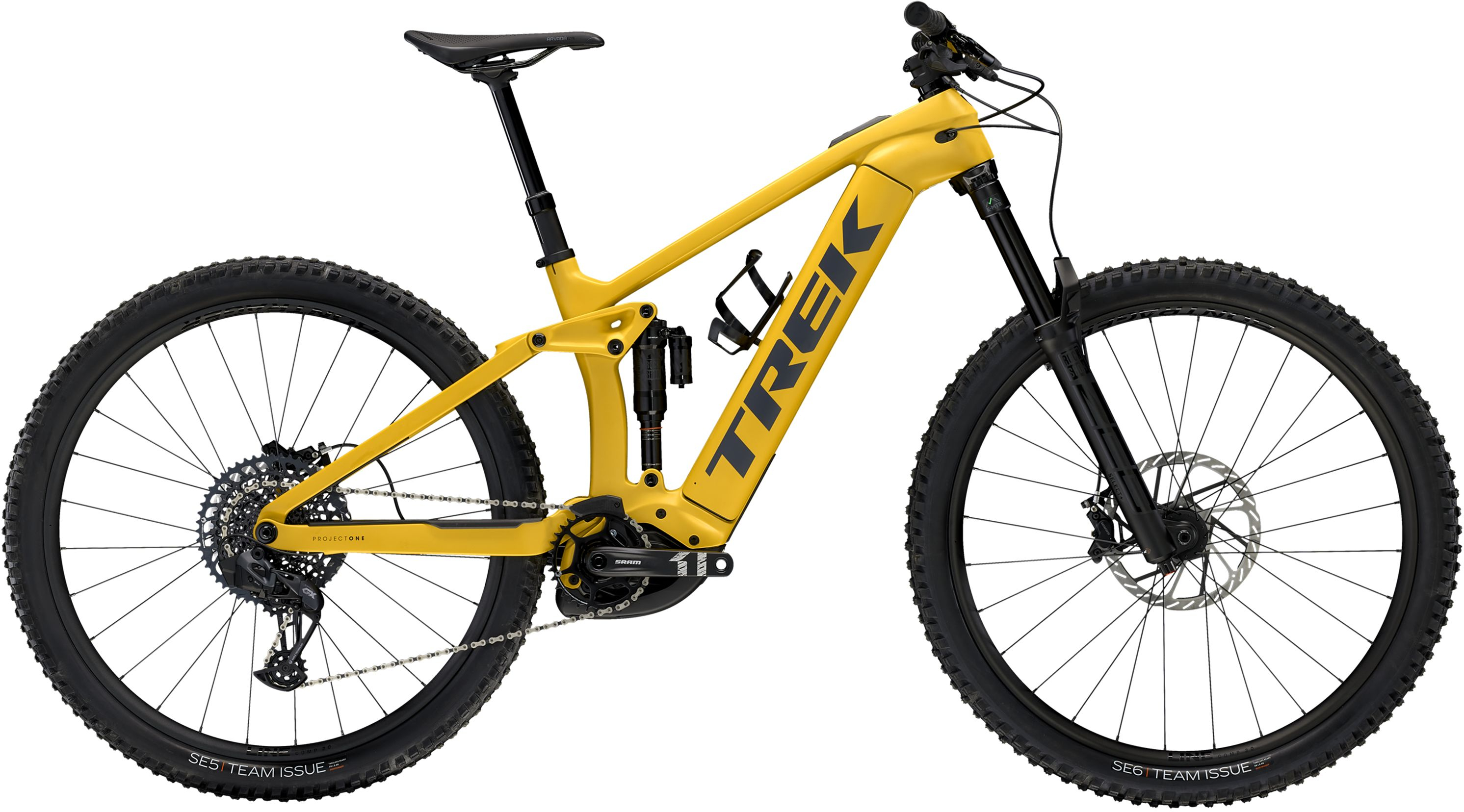

Trek Rail 9.8 GX AXS Gen 4: The Ultimate Long-Travel Carbon e-MTB
The Trek Rail 9.8 GX AXS Gen 4 is the ultimate long-travel carbon e-MTB, designed to conquer the most rugged trails and power you effortlessly back up the mountain. Equipped with cutting-edge upgrades, this bike is built for thrill-seekers who demand top-tier performance and unbeatable durability. With Bosch’s latest smart system technology, including a powerful 750 Wh battery, intuitive controls, and Bluetooth connectivity, your ride will reach new heights of performance, convenience, and fun.
Built for Maximum Performance: The Trek Rail 9.8 is the e-MTB of your dreams, blending carbon strength with the latest tech to deliver unparalleled power and precision. The OCLV Mountain Carbon frame features a longer reach, oversized head tube, and seat tube for enhanced strength, stability, and control, even on the most challenging terrain.
High-End Suspension & Precision Shifting: Enjoy a super-smooth ride with the RockShox ZEB Select+ fork and RockShox Super Deluxe Ultimate Thru Shaft shock, offering plush, responsive suspension for even the roughest descents. With the SRAM GX AXS wireless electronic shifting, gear changes are quick, precise, and effortless, keeping you in full control no matter the trail.
The Bosch Smart System:
Advanced Features for Serious Riders:
Designed for the Ultimate Ride: Whether you’re tearing up gnarly descents or racing back up the mountain, the Trek Rail 9.8 GX AXS Gen 4 combines power, precision, and innovation for a ride that can keep up with your most ambitious adventures. With its durable frame, high-performance suspension, and the latest e-bike technology, this bike is built to handle it all—pushing the limits of what you can do on the trail.
Frame: OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel
Fork: RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, 1.8"
oversized tapered steerer, eMTB optimised crown, 44 mm offset, Boost110,
15 mm Maxle Stealth, 160 mm travel
Shock: RockShox Super Deluxe Select+ RT, 230 mm x 57.5 mm
Wheel Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Wheel Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"
Tyres: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"/ Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Shifter: SRAM GX Eagle AXS, 12 speed
Rear derailleur: SRAM GX Eagle AXS
Crank: SRAM X1 1000, 34T, 165 mm length
Chainring: SRAM X-SYNC 2, 34T, alloy
Cassette: SRAM Eagle XG-1275, 10-52, 12-speed
Chain: SRAM GX Eagle, 12-speed
Saddle: Bontrager Arvada, austenite rails, 138 mm width
Seatpost: Bontrager Line Elite Dropper
Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Grips: Bontrager XR Trail Elite, nylon lock-on
Stem: Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length
Brake Set: SRAM Code R 4-piston hydraulic disc
Brake rotor: SRAM CentreLine, 6-bolt, round-edge
Battery: Bosch PowerTube 750Wh, smart system (625Wh on size small)
Charger: Bosch standard 4A, 230V, smart system
Controller: Bosch System Controller BRC3100, smart system
Motor: Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
| Brand | TREK |
| Model Year | 2023 |
| Barcodes | 601842783214, 601842783221, 601842783238, 601842783375, 601842783382, 601842783399, 601842783405, 601842783412, 601842783429, 601842783436 |
| SKUs / Part Numbers | 5278173, 5278174, 5278175, 5278176, 5278177, 5278178, 5278179, 5278193, 5278194, 5278195 |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
